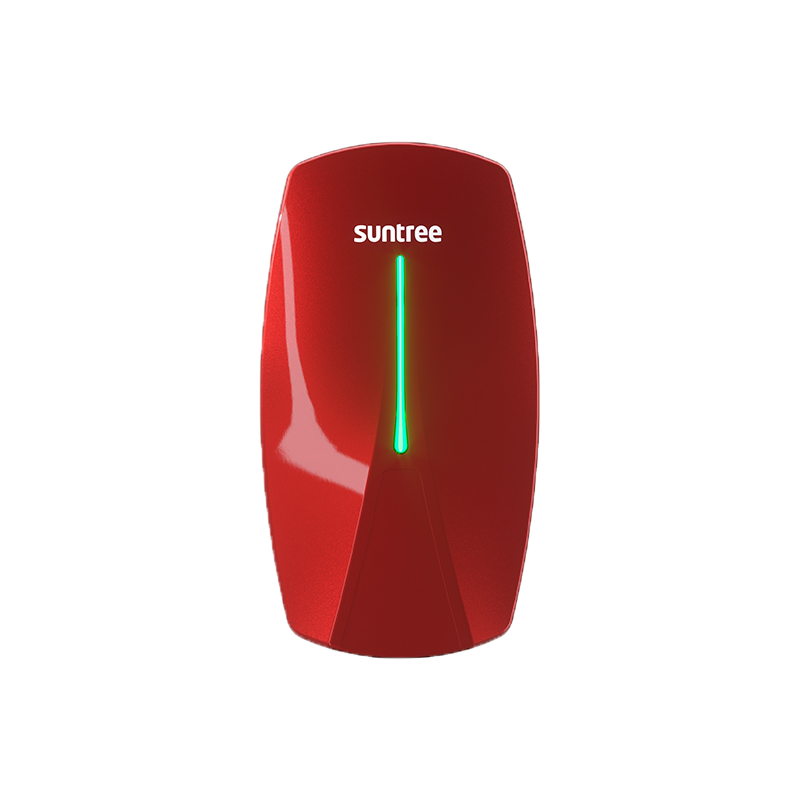

MINI EV Charger SWJ3
Slim and compact | Adaptable to all models | APP control
Multiple Option
Type 2/ GB/T charging cable Adjustable output current (From the App) Wall-mount/ Floor-stand installation
Easy Operation

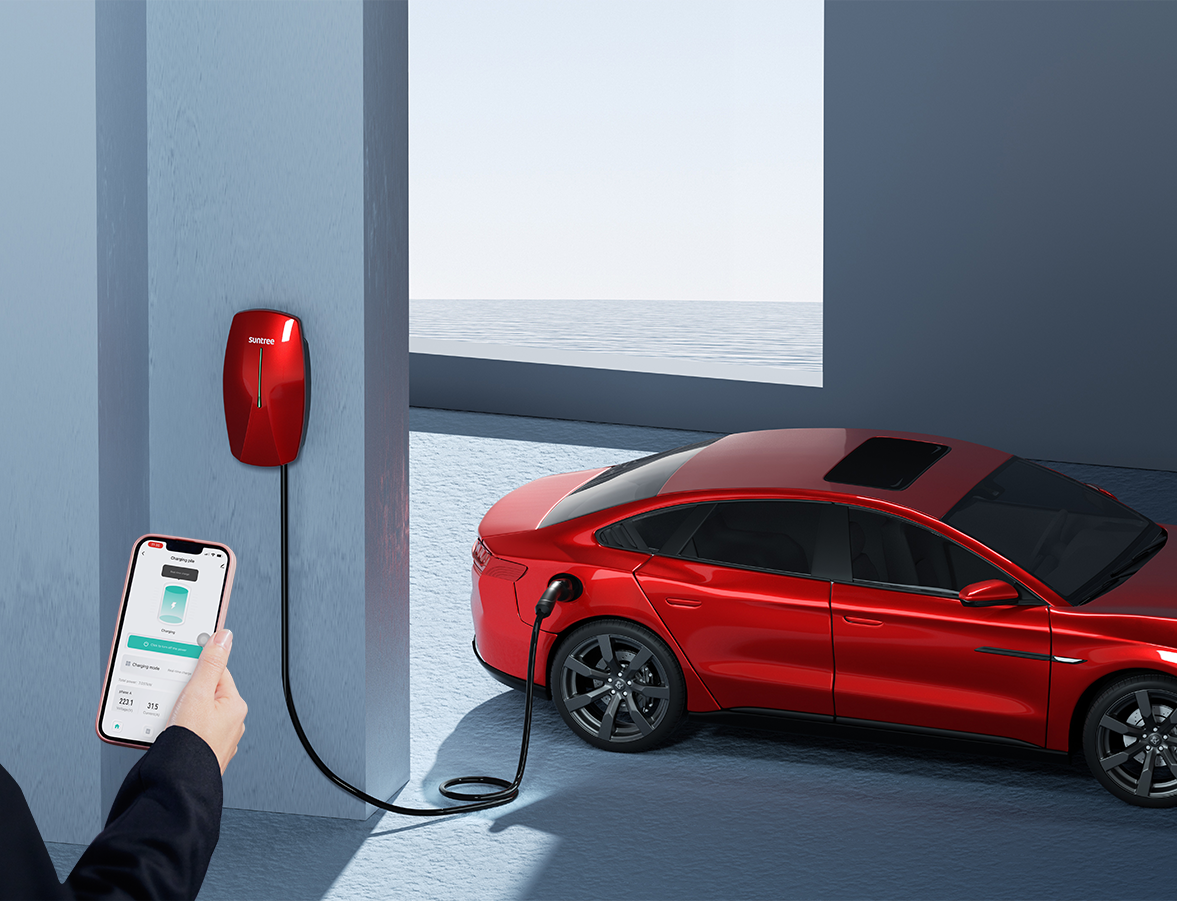

Plug-in and play: Plug-in the charging cable and start charging directly RFID: Start/ Stop charging by RFlD card APP: Remote control
Secure Protection
Over temperature protection Leakage protection: Type A+6mA DC (Equivalent to Type B) Over voltage protection，Short Circuit Protection Ground Protection，Surge Protection
Output Voltage
220-415V AC

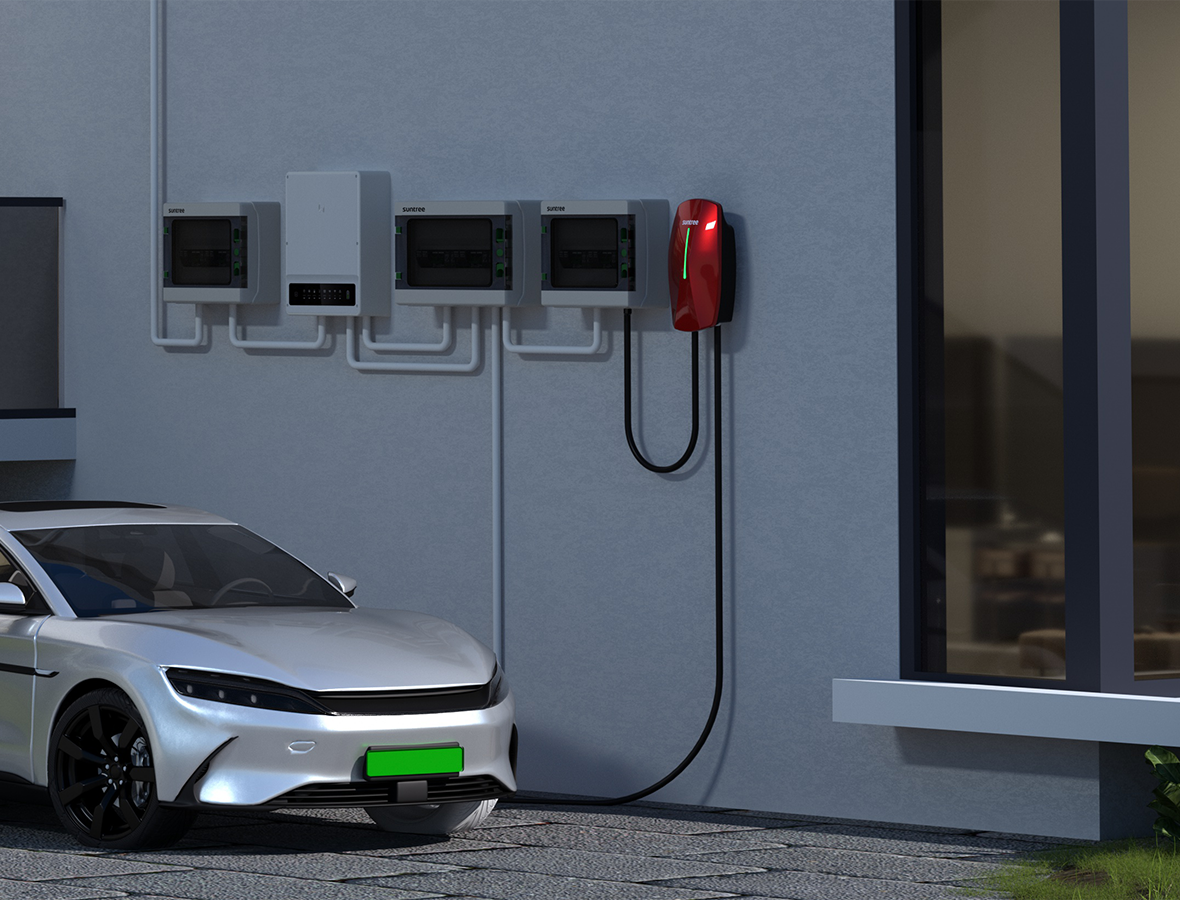

Installation
Wall-Mounting (Column Optional)
Rated Power
7 kw/11kw/22kw
Certification
CE & UKCA & TUV &CB
IP Degree
IP65
Charging Port
Type 2 Cable
Wifi
Support
Cover Material
ABS + PC
Dimension
330*163*87mm(H*W*D)
Start Mode
Plug-in & Charge / RFID Card /APP
Cable Length
5/7/10M Optional
Frequency
50/60Hz
